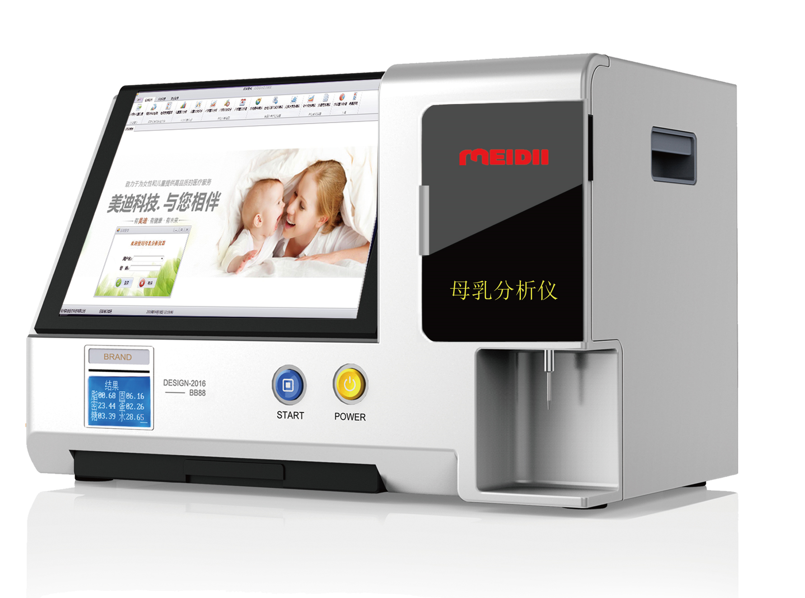

DMR-0802 Medical Breast Milk Analyzer

DMR-0802(Elite Edition)

Fully Automatic Breast Milk Analyzer

The following reports can be provided:

(1) Breast milk test analysis report

(2) Mother's dietary nutrition analysis and guidance

(3) Mother's food exchange report

(4) Child's nutrition assessment report

(5) Child's food exchange diet report

(6) Mother-infant daily diet report

l Test items: 7-10 test results including fat, protein, lactose, density, water, energy, total minerals etc.

l Analysis module: Breast milk test data analysis module, child nutrition assessment, child food exchange guidance, mother's dietary nutrition analysis and nutrition guidance module

l Scope of application: colostrum, transitional milk, mature milk, late milk

Product features:

1. Using ultrasonic analysis technology with high accuracy and reliability that is the most suitable full-band design for breast milk testing

2. The submitted samples for testing do not need to be processed, no need to add quality control solution and no need auxiliary reagents to ensure the accuracy of the original breast milk sample testing

3.  Any condition can be statistically analyzed in pie form, table form and other form of reports, which is convenient for various academic analyses and data reporting by institutions at all levels

4. Fully automatic testing: including self-purification testing module and automatic cleaning module

5. Fully automatic completion of sample suction, detection, cleaning and emptying, simple operation and convenient maintenance

6. Vacuum-design detector to avoid corrosion of the detector by the cleaning fluid and interference with the test sample (optional special negative pressure aspirator)

7. Fully automatic sampling by the sampling needle to ensure reliable testing of small amounts of samples and special samples

8. Fully automatic cleaning of sampling needles’ inner wall, outer wall, testing module, sampling pipeline, etc. (optional negative pressure exhaust function)

9. Automatic analysis of results: automatic analysis and diagnosis of each test result and generation of a test report (with self-diagnostic analysis suggestions)

10. 12-inch TFT touch screen, wireless keyboard and mouse, easy operation, and breast milk analyzer calibrated with international standard methods to ensure testing accuracy. Global wide warranted Brand computer and high-definition display. Data storage, built-in brand computer system

 11. One-touch touching screen operation for testing, cleaning and emptying. No manual intervention is required during the cleaning process, and maintenance is completed automatically.

12. Provides normal reference values for breast milk levels for breastfeeding mothers

13. Testing and PC system are integrated into one machine, no additional computer is required, saving procurement costs and usage area

14. Reasonable structural design, ergonomic design, approved appearance design patent, approved utility model patent, software copyright, etc.

Technical parameters:

1. Good repeatability: ≤0.03%

2. Error: ≤0.1%

3. Sample temperature: 5-37°, error <0.1%

4. Print report: external laser printer, A4 report sheet, wireless Bluetooth keyboard and mouse

5. Test time: entering test time ≤45 seconds/sample, full test time ≤50 seconds/sample, full cleaning time ≤90 seconds/sample

6. Data management: data can be searched, edited, exported, imported, saved by multiple conditions

7. Data statistics: classify and count the milk test results of mothers of different lactation stages, regions, ages, parities and infants of different ages, genders, weights, gestational weeks, etc.

8. Sample volume: ≤5ml, to prevent the influence of different stages of milk on the measurement results

9.  Display: large and small dual screen display, preheating display function, cleaning display function, result display function

10. External port: can be connected to the hospital LIS system to achieve duplex communication, can add unlimited number of test users, test results are saved in real time, can be reviewed at any time.

11. Operating system: Windows system, wifi 802.11G/N wireless network

12. Power supply voltage: A.C.220±22V/50Hz

13. Input power: ≤200VA

14. Environmental temperature: 10℃-45℃

15. Environmental humidity: 30%-80%

16. Weight: ≤16KG

17. Instrument specifications: 500mmx350mmx450mm
